Spring Boot – JDBC

Last Updated : 09 Jan, 2024

Spring Boot JDBC is used to connect the Spring Boot application with JDBC by providing libraries and starter dependencies. Spring Boot JDBC has a level of control over the SQL queries that are being written. Spring Boot JDBC has simplified the work of Spring JDBC by automating the work and steps by using the concept of Auto Configuration. JdbcTemplate, DataSource, NamedParameterJdbcTemplate, etc. all required objects are auto configured, and object creation is done by Spring Boot.

To build an application from scratch, you just need to use JdbcTemplate. As a programmer, you need to auto-wire the JdbcTemplate and perform the database operations like Create, Retrieve, Update, and Delete. Inputs need to be passed by application.properties or application.yml file. In application.properties file, we configure DataSource and connection pooling.

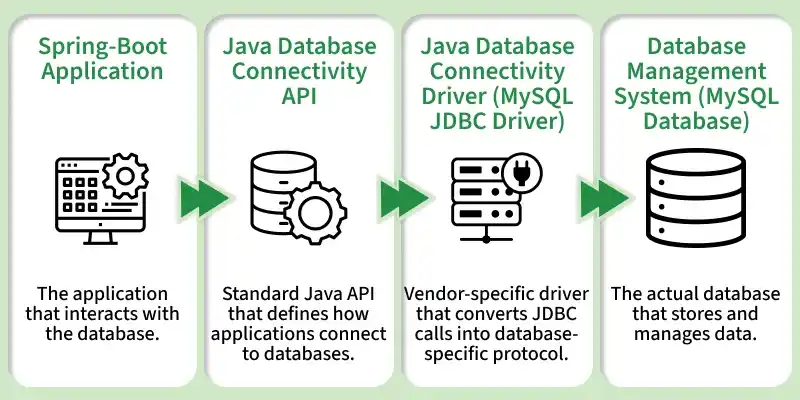

JDBC consists of two parts as depicted below:

JDBC interfaces: java.sql / javax.sql packages have classes/interfaces of JDBC API.
JDBC drivers: JDBC Driver allows Java programs to interact with the database.

Spring Boot offers many ways to work with databases (e.g – JdbcTemplate) without the cumbersome effort that JDBC needs. You can use raw JDBC to manually configure the workings.

Spring Boot - JDBC

JDBC Connection Pooling

JDBC Connection pooling is a mechanism which makes a database connection as reusable for more than one client, so burden on a database server will be reduced. A connection pool contains set of pooled connections or reusable connections.

When we use DriverManager or DataSource, the connection opened with a DataSource is a non-reusable. For each client if a new connection is opened, the burden on database server will be increase. So, to reduce the burden on database server, we use connection pooling.

JDBC-Connection-Pool

How Connection Pooling Works

A server administrator prepares a connection pool with a setoff connection and also a mediator object as a DataSource API to access the pool.
An administrator stores DataSource object into JNDI (Java Naming Directory Interface).
Application reads the DataSource from JNDI registry and asks for a connection from a pool.
A DataSource object takes a connection from a pool and creates a proxy or logical connection to it and then sens the proxy connection to Java.
When a Java program closes proxy connection, the DataSource will do real connection back to the pool.

To work with a database using Spring Boot, we need to add the following dependencies:

A. JDBC API

Database connectivity API specifies how the client connects and queries a database.

pom.xml Maven Dependency:

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-jdbc</artifactId>
</dependency>

B. MySQL Driver

MySQL JDBC and R2DBC driver to work with the database.

<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
  <scope>runtime</scope>
</dependency>

After this, we will add datasource properties in application.properties file:

For MySQL database:

spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.url=jdbc:mysql://localhost:8080/test
spring.datasource.username=root
spring.datasource.password=root

Project Structure

Implementation of an Application

A. pom.xml (Configuration File)

XML

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.6.3</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>sia</groupId>
    <artifactId>GFG</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>GFG</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>11</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

B. Boot of Spring application (GfgApplication.java)

Java

// Java Program to Illustrate Boot of Spring Application

package gfg;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

// Annotation
@SpringBootApplication

// Application(Main) Class
public class GfgApplication {

    // Main driver method
    public static void main(String[] args)
    {

        SpringApplication.run(GfgApplication.class, args);
    }
}

C. Configuration of DataSource (ConfigDataSource.java)

DataSourceBuilder<T> is a useful class to build a DataSource.

- org.springframework.boot.jdbc.DataSourceBuilder<T>
- public final class DataSourceBuilder<T extends DataSource> extends Object

Methods of DataSourceBuilder<T> Class

Method	Description
create()	Creates a new instance of DataSourceBuilder.
driverClassName(String driverClassName)	Specifies the driver class name which is to be used for building the datasource.
url(String url)	Specifies the URL which is to be used for building the datasource.
username(String username)	Specifies the username which is to be used for building the datasource.
password(String password)	Specifies the password which is to be used for building the datasource.
build()	Returns a newly built DataSource instance.

This builder supports the following pooling Datasource implementations.

Name	Description
Hikari	com.zaxxer.hikari.HikariDataSource
Tomcat JDBC Pool	org.apache.tomcat.jdbc.pool.DataSource
Apache DBCP2	org.apache.commons.dbcp2.BasicDataSource
Oracle UCP	oracle.ucp.jdbc.PoolDataSourceImpl

Note: The first available pool implementation is used when no type has been explicitly set.

Console

Example:

Java

// Java Program Illustrating Configuration of
// DataSourceConfiguration of DataSource

package gfg;

import javax.sql.DataSource;
import org.springframework.boot.jdbc.DataSourceBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

// Annotation
@Configuration

// Class
public class ConfigDataSource {

    @Bean public static DataSource source()
    {

        DataSourceBuilder<?> dSB
            = DataSourceBuilder.create();
        dSB.driverClassName("com.mysql.jdbc.Driver");

        // MySQL specific url with database name
        dSB.url("jdbc:mysql://localhost:3306/userdetails");

        // MySQL username credential
        dSB.username("user");

        // MySQL password credential
        dSB.password("password");

        return dSB.build();
    }
}

Note: Driver class name – ‘com.mysql.jdbc.Driver’ has been deprecated. It would not give error because the driver is automatically loaded and manual loading is not necessary. The new driver class name is ‘com.mysql.cj.jdbc.Driver‘.

D. User credentials to be stored in the database (UserDetails.java)

One can add the ‘Lombok’ library to skip Getter/Setter methods, construct No-Arguments constructor, the constructor for final fields, etc.

Maven-pom.xml dependency

<dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
    <optional>true</optional>
</dependency>

Example:

Java

// Java Program Illustrating User Credentials to
// be Stored in the Database

package geek.details;

import lombok.Data;

// Annotation for Getter/Setter methods
@Data
public class UserDetails {

    String user;
    String userName;
    String password;
}

E. Utility class for connecting and querying the database (JDBC.java)

Password encoding is a must for many security reasons. To use Spring Security, add the following dependency:

Maven – pom.xml

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-security</artifactId>
</dependency>

<dependency>
    <groupId>org.springframework.security</groupId>
    <artifactId>spring-security-test</artifactId>
    <scope>test</scope>
</dependency>

Pre-requisites are as follows:

On adding the above dependency, the login page gets activated by default.
The default username is – ‘user.’
The password is automatically generated by the Spring Security that gets displayed on the console after booting the application.

Security password in Console

Note: Generated password becomes invalid for the next iteration/Running the application as the new password gets generated, but the username remains same.

Default login page

For encoding Spring offers many ways like the one – ‘BCryptPasswordEncoder’.
It is an implementation of PasswordEncoder which uses the BCrypt strong hashing algorithm.
Version, Strength, and SecureRandom instances can be modified.

- org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder
- public class BCryptPasswordEncoder extends java.lang.Object implements PasswordEncoder

Constructors of BCryptPasswordEncoder Class:

Constructor	Description
BCryptPasswordEncoder( )	Default constructor.
BCryptPasswordEncoder( int strength )	Strength is the log rounds to use between 4 to 31. Default is 10.
BCryptPasswordEncoder( int strength, SecureRandom random )	The secure random instance to be used.
BCryptPasswordEncoder( BCryptVersion version )	Version of BCrypt – 2a, 2b, 2y.
BCryptPasswordEncoder( BCryptVersion version, int strength )	Bcrypt versions / log rounds.
BCryptPasswordEncoder( BCryptVersion version, int strength, SecureRandom random )	Bcrypt versions / log rounds / Secure Random instance.
BCryptPasswordEncoder( BCryptVersion version, SecureRandom random )	Bcrypt versions / Secure Random instance.

Methods of BCryptPasswordEncoder Class:

Method	Description
encode(CharSequence rawPassword)	Encodes a raw password provided with SHA-1 or greater hash combined with 8-Byte or greater randomly generated salt value.
matches(CharSequence rawPassword, String encodedPassword)	Verifies the stored encoded password matches the submitted encoded raw password. Returns true if matched otherwise false.
upgradeEncoding(String encodedPassword)	Returns true if the encoded password should be encoded again for better security, else false. The default implementation always returns false.

Example:

Java

// Java Program Illustrating Utility class for Connecting
// and Querying the Database

package gfg;

import geek.details.UserDetails;
import java.security.SecureRandom;
import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.SQLException;
import javax.sql.DataSource;
import lombok.extern.slf4j.Slf4j;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;

// Annotation to provide logging feature
@Slf4j

// Class
public class JDBC {

    public int insert(UserDetails user)
    {
        DataSource dataSource = null;
        Connection connection = null;
        PreparedStatement prepStatement = null;

        int result = 0;
        try {

            // Get the configured datasourse
            dataSource = ConfigDataSource.source();
            // Attempt for connection to MySQL
            connection = dataSource.getConnection();
            prepStatement = connection.prepareStatement(
                "insert into user (user,username,password) values (?,?,?)");
            prepStatement.setString(1, user.getUser());
            prepStatement.setString(2, user.getUserName());

            BCryptPasswordEncoder bCryptPasswordEncoder
                = new BCryptPasswordEncoder(
                    10, new SecureRandom());
            String encodedPassword
                = bCryptPasswordEncoder.encode(
                    user.getPassword());

            prepStatement.setString(3, encodedPassword);
            result = prepStatement.executeUpdate();
        }
        catch (SQLException e) {
            log.getName();
        }

        return result;
    }
}

F. Controller of Spring Application (JdbcController.java)

Java

// Java Program to Illustrate Controller of Spring Application

package gfg;

import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;

import geek.details.UserDetails;

@Controller
@RequestMapping("/jdbc")
public class JdbcController {

    @GetMapping
    public String get(Model model) {

      // Add object to be bound by user provided details
        model.addAttribute("obj", new UserDetails());
        return "template";
    }

    @PostMapping
    public String post(@ModelAttribute("obj") UserDetails user, Model model) {

        JDBC SQL = new JDBC();
        int result = SQL.insert(user);
        if(result == 1)
            model.addAttribute("message", "Successful JDBC connection and execution of SQL statement");
        else
            model.addAttribute("message", "Query not submitted!");
        return "Status";
    }
}

Templates (Thymeleaf)

A. template.html: Gets user data and binds it to UserDetails object.

HTML

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml"
      xmlns:th="http://www.thymeleaf.org">
 <head>
 <title>GFG</title>
 </head>
 <body>
 <h1>Register Geek</h1>

 <form method="POST" th:action="@{/jdbc}" th:object="${obj}">

 <label for="user">User: </label><br/>
 <input type="text" th:field="*{user}"/><br/>

 <label for="username">Username: </label><br/>
 <input type="text" th:field="*{userName}"/><br/>

 <label for="password">Password: </label><br/>
 <input type="password" th:field="*{password}"/>

 <input type="submit" value="Register"/>

 </form>
 </body>
</html>

Output:

Filling the User details

B. Status.html

Display the message of JDBC operation.

HTML

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml"
      xmlns:th="http://www.thymeleaf.org">
 <head>
 <title>GFG</title>
 </head>
 <body>
 <h1>STATUS</h1>
 <h2 th:text="${message}">
       <span>message will print here</span>
 </h2>
 </body>
</html>

Output in browser:

Displaying the message in browser

C. MySQL Database

Output:

Retrieved the stored User details

Note: Spring Boot offers many convenient ways of working with data, e.g. Spring Data JPA – which has default implementation of Hibernate. We can use them to make advantage of Java Persistence API (JPA) for object/relational mapping and to avoid cumbersome efforts.

Spring Boot - AOP After Throwing Advice

pawardarshan461

Improve

Article Tags :

Practice Tags :

Java

Spring Boot – JDBC

JDBC Connection Pooling

How Connection Pooling Works

Project Structure

Implementation of an Application

XML

Java

Methods of DataSourceBuilder<T> Class

Java

Java

Pre-requisites are as follows:

Constructors of BCryptPasswordEncoder Class:

Methods of BCryptPasswordEncoder Class:

Example:

Java

Java

Templates (Thymeleaf)

HTML

Output:

HTML

Output in browser:

Output:

Similar Reads

Thank You!

What kind of Experience do you want to share?
