Object Diagrams | Unified Modeling Language (UML)

Object diagrams are UML diagrams that show the instances of classes and the relationships between them at a specific point in time. They provide a snapshot of how objects interact within a system during execution.

• Displays objects, their attributes, and links between them.
• Helps in understanding the real-time structure and behavior of a system.

Example: A Student object connected to a Course object showing a student enrolled in a course.

Object

An object is a specific instance of a class that contains its own unique data and behavior. A class acts as a blueprint, while objects are the real entities created from it.

• Represents a real-world entity with attributes and actions.
• Each object has unique values for its attributes.

Example: Student s1 with name = "Rahul" and rollNo = 101 is an object of the Student class.

Classifier

A classifier in UML is an element that defines a common set of features such as attributes, methods, and operations for a group of instances.

• Used to group elements that share common properties.
• Classes, objects, components, and nodes can act as classifiers in UML.

Example: A Student class is a classifier because multiple student objects can be created from it.

Object Diagram Notations

The object diagram in UML uses specific notations to represent instances of classes and their relationships at a particular moment in time.

1. Objects or Instance specifications

Represents an instance of a class that exists within the system.

• Shown as a rectangle containing the object name and details.
• Multiple instance specifications can be used to represent changes in an object over time.

2. Attributes and Values

Represent the properties of an object and their current values.

• Listed inside the object box beneath the object name.
• Show the state and data associated with a specific object instance.

3. Link

Represents a relationship or connection between two objects in an object diagram.

• Shown as a solid line connecting the related objects.
• Specifies how instance specifications or objects are associated with each other.

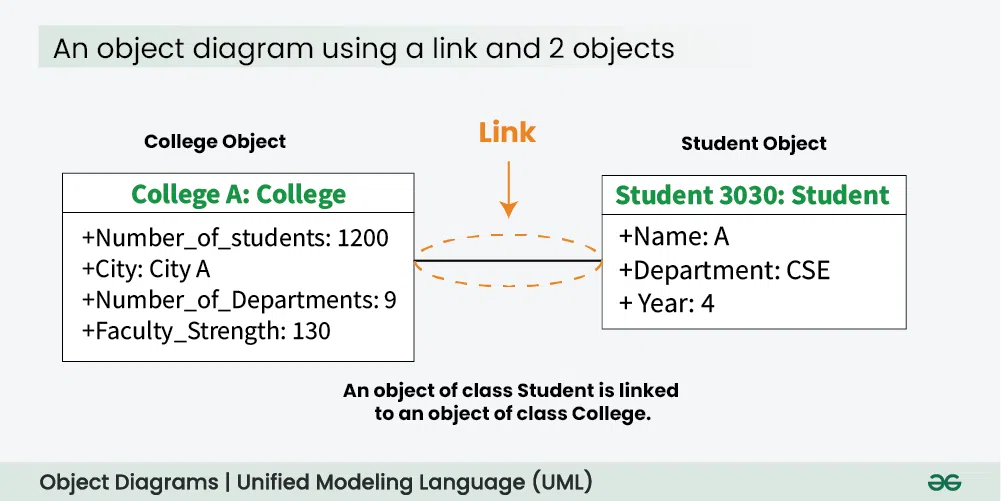

For Example - In the figure below, an object of class Student is linked to an object of class College.

4. Dependency Relationships

We use a dependency relationship to show when one element depends on another element. A dependency is used to depict the relationship between dependent and independent entities in the system.

• Any change in the definition or structure of one element may cause changes to the other.
• This is a unidirectional kind of relationship between two objects.

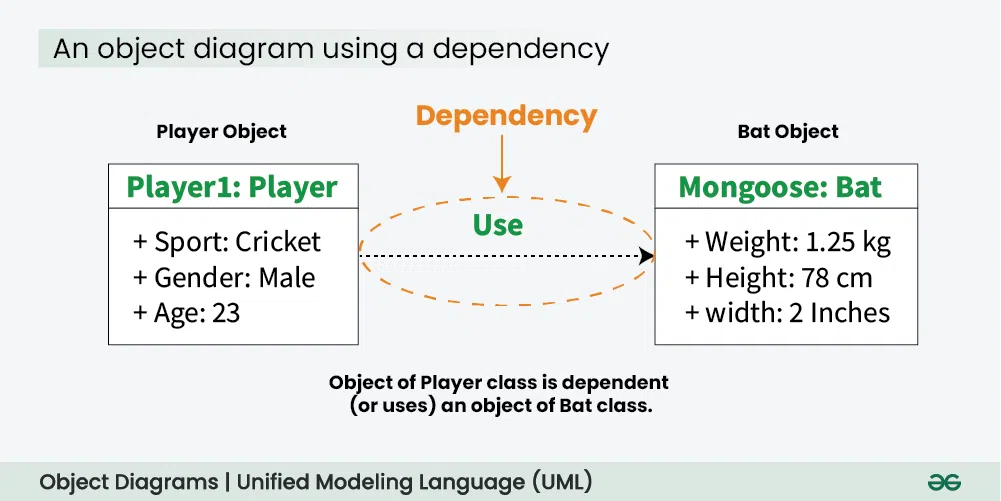

For example - In the figure below, an object of Player class is dependent (or uses) an object of Bat class.

5. Association

Association is a relationship between two objects or classes where one object references another. In UML, it is represented by a line connecting object boxes, and it can be uni-directional or bi-directional using arrows.

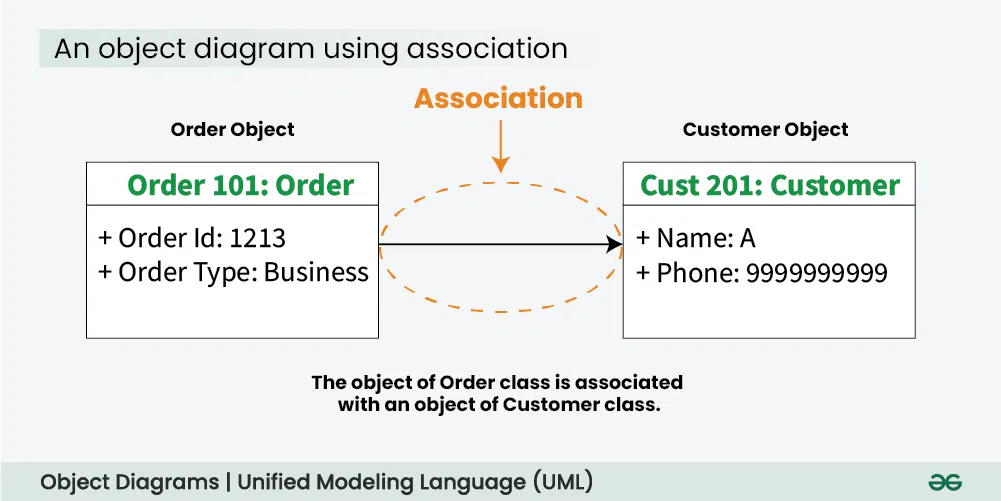

For example - The object of Order class is associated with an object of Customer class.

6. Aggregation

Aggregation represents a "has a" relationship. We use a hollow diamond on the containing object with a line which joins it to the contained object.

• Aggregation is a specific form of association.
• It is a kind of parent-child relationship however it isn't inheritance.
• Aggregation occurs when the lifecycle of the contained objects does not strongly depend on the lifecycle of container objects.

For example - A library has an aggregation relationship with books. Library has books or books are a part of library. The existence of books is independent of the existence of the library.

7. Composition

Represents a strong whole-part relationship where the child object depends on the parent object.

• Shown using a filled diamond at the parent object's end.
• The child object cannot exist independently of the parent object.

Consider the example of a boy Gurkaran: Gurkaran is composed of legs and arms. Here Gurkaran has a composition relationship with his legs and arms. Here legs and arms can't exist without the existence of their parent object.

Purpose of Object Diagrams

The main purpose of using object diagrams is:

• They offer a detailed view of how objects interact with each other in specific scenarios.
• Proper design and analysis of applications can be faster and efficient.
• Object diagrams are beneficial during the implementation phase of software development.
• Promoting a shared understanding of specific instances and their relationships, facilitating collaboration among team members.

Benefits

Object diagrams help visualize object relationships, interactions, and system behavior, making development and testing more effective.

• Detailed Relationship View: Provides a clear understanding of object relationships, dependencies, and collaborations within the system.
• Integration Testing Support: Assists in testing interactions between objects to ensure smooth communication among system components.
• Code Validation: Helps verify that the implemented code matches the intended design and object relationships.
• Scenario Visualization: Clearly illustrates specific use cases and object behavior in different system situations.

Use Cases of Object Diagrams

Object diagrams are used to visualize real object relationships and interactions at a specific point in time, helping in development, testing, and system understanding.

• Communication and Collaboration: Improves communication among team members and stakeholders by clearly showing object relationships.
• Test Case Design: Assists testers in creating test cases based on object behavior and interactions.
• Debugging and Troubleshooting: Helps identify and fix issues by analyzing object states at a particular moment.
• Training and Documentation: Useful for training new team members and improving system documentation through visual representation.
