    Question 1

    In the following truth table, V = 1 if and only if the input is valid.
    gatecs20133

    What function does the truth table represent?

    • Priority encoder

    • Decoder

    • Multiplexer

    • Demultiplexer

    Question 2

    What is the Boolean expression for the output f of the combinational logic circuit of NOR gates given below? CSE_201031

    • (Q+R)'

    • (P+Q)'

    • (P+R)

    • (P+Q+R)'

    Question 3

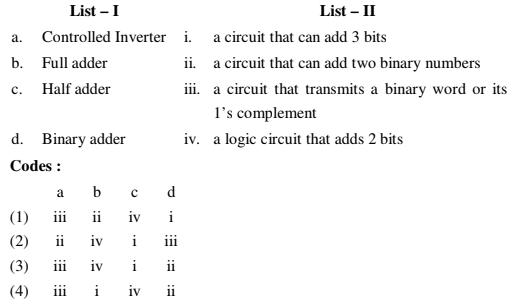

    Match the following: 10

    • (1)
    • (2)
    • (3)
    • (4)

    Question 4

    An N-bit carry look ahead adder, where N is a multiple of 4, employs ICs 74181 (4 bit ALU) and 74182 (4 bit carry look ahead generator). The minimum addition time using the best architecture for this adder is
    • proportional to N
    • proportional to logN
    • a constant
    • none of the above

    Question 5

    A ROM is used to store the table for multiplication of two 8-bit unsigned integers. The size of ROM required is
    • 256 x 16
    • 64K x 8
    • 4K x 16
    • 64K x 16

    Question 6

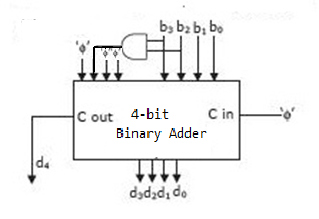

    Consider the circuit given below which has a four bit binary number b3b2b1b0 as input and a five bit binary number d4d3d2d1d0 as output. The circuit implements: b_adder111               .

    • Binary to Hex conversion
    • Binary to BCD conversion
    • Binary to grey code conversion
    • Binary to radix-12 conversion

    Question 7

    Consider the circuit in below figure. f implements

    • (ABC)' + A'BC' + ABC

    • A + B + C

    • A ⊕ B ⊕ C

    • AB + BC + CA

    Question 8

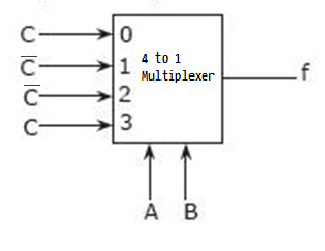

    A logic network has two data inputs A and B, and two control inputs C0 and C1. It implements the function F according to the following table. logiic         . Implement the circuit using one 4 to 1 Multiplexer, one 2-input Exclusive OR gate, one 2-input AND gate, one 2-input OR gate and one Inverter.

      Question 9

      The output of the following combinational circuit is F. q10 The value of F is:

      • P1+P\'2P3

      • P1+P\'2P\'3

      • P1+P2P\'3

      • P\'1+P2P3

      Question 10

      The output of the following combinational circuit is F. q10 (1) The value of F is :

      • P1+P'2P3

      • P1+P'2P'3

      • P1+P2P'3

      • P'1+P2P3
