Articulation Points (or Cut Vertices) in a Graph

Given an undirected graph consisting of V vertices and E edges. The graph is represented as a 2D array edges[][], where each element edges[i] = [u, v] denotes an undirected edge between vertices u and v.
Find all the articulation points in the graph. If no such points exist, return {-1}.

An articulation point is a vertex whose removal, along with all its connected edges, increases the number of connected components in the graph.

Note: The graph may be disconnected, meaning it can consist of multiple connected components.

Examples:

Input: V = 5, edges[][] = [[0, 1], [1, 4], [4, 3], [4, 2], [2, 3]]

Output: [1, 4]

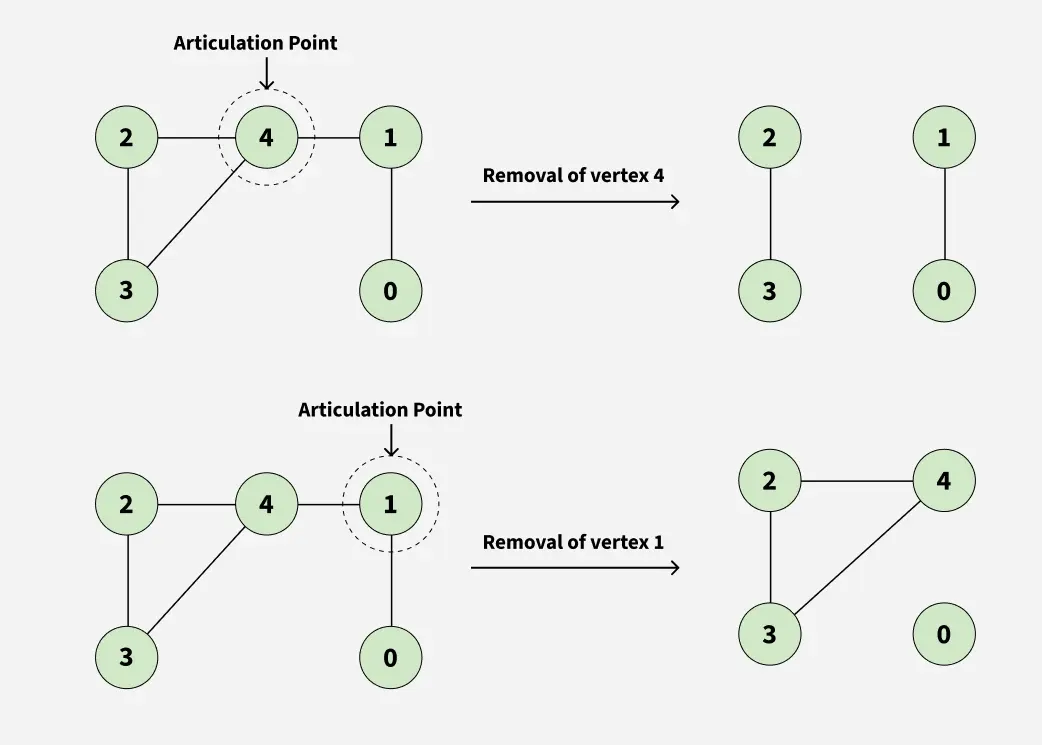

Explanation: Removing vertex 1 or 4 disconnects the graph, as illustrated below:

Input: V = 4, edges[][] = [[0, 1], [0, 2]]
Output: [0]
Explanation: Removing the vertex 0 will increase the number of disconnected components to 3.

Try It Yourself

Table of Content

[Naive Approach] - Using DFS - O(V × (V + E)) Time and O(V) Space
[Better Approach] - Using Tarjan's Algorithm - O(V + E) Time and O(V) Space
[Expected Approach] - Using Tarjan’s Algorithm (Iterative Method) - O(V + E) Time and O(V) Space

[Naive Approach] - Using DFS - O(V × (V + E)) Time and O(V) Space

The idea is to traverse all the vertices and check whether it could be an articulation point or not. For that, remove the chosen vertex and call DFS (Depth First Search) on its neighbors. If DFS needs to be called more than once (i.e., multiple disconnected components are formed), then removing that vertex increases the number of components, so it is an articulation point.

C++

#include <iostream>
#include<vector>

using namespace std;

// Builds adjacency list from edge list
vector<vector<int>> constructadj(int V, vector<vector<int>> &edges) {

    vector<vector<int>> adj(V);

    for (auto it : edges) {
        adj[it[0]].push_back(it[1]);
        adj[it[1]].push_back(it[0]);
    }
    return adj;
}

// Standard DFS to mark all reachable nodes
void dfs(int node, vector<vector<int>> &adj, vector<bool> &visited) {
    visited[node] = true;

    for (int neighbor : adj[node]) {

        if (!visited[neighbor]) {
            dfs(neighbor, adj, visited);
        }
    }
}

// Finds articulation points using naive DFS approach
vector<int> articulationPoints(int V, vector<vector<int>>& adj ) {

    vector<int> res;

    // Try removing each node one by one
    for (int i = 0; i < V; ++i) {
        vector<bool> visited(V, false);
        visited[i] = true;

        // count DFS calls from i's neighbors
        int comp = 0;
        for (auto it : adj[i]) {

            // early stop if already more than 1 component
            if (comp > 1) break;

            if (!visited[it]) {

                // explore connected part
                dfs(it, adj, visited);
                comp++;
            }
        }

        // if more than one component forms, it's an articulation point
        if (comp > 1)
            res.push_back(i);
    }

    if (res.empty())
        return {-1};

    return res;
}

int main() {
    int V = 5;
    vector<vector<int>> edges = {{0, 1}, {1, 4}, {2, 3}, {2, 4}, {3, 4}};
    vector<vector<int>> adj = constructadj(V, edges);
    vector<int> ans = articulationPoints(V, adj);

    for (auto it : ans) {
        cout << it << " ";
    }
    return 0;
}

Java

import java.util.ArrayList;
import java.util.Arrays;

class GFG {

    // Builds adjacency list from edge list
    static ArrayList<ArrayList<Integer>> constructadj(int V, int[][] edges) {
        ArrayList<ArrayList<Integer>> adj = new ArrayList<>();
        for (int i = 0; i < V; i++) {
            adj.add(new ArrayList<>());
        }

        for (int[] edge : edges) {
            adj.get(edge[0]).add(edge[1]);
            adj.get(edge[1]).add(edge[0]);
        }
        return adj;
    }

    // Standard DFS to mark all reachable nodes
    static void dfs(int node,
    ArrayList<ArrayList<Integer>> adj, boolean[] visited) {

        visited[node] = true;

        for (int neighbor : adj.get(node)) {
            if (!visited[neighbor]) {
                dfs(neighbor, adj, visited);
            }
        }
    }

    // Finds articulation points using naive DFS approach
    static ArrayList<Integer> articulationPoints(int V, ArrayList<ArrayList<Integer>> adj) {

        ArrayList<Integer> res = new ArrayList<>();

        // Try removing each node one by one
        for (int i = 0; i < V; ++i) {
            boolean[] visited = new boolean[V];
            visited[i] = true;

            // count DFS calls from i's neighbors
            int comp = 0;
            for (int it : adj.get(i)) {

                // early stop if already more than 1 component
                if (comp > 1) break;

                if (!visited[it]) {

                    // explore connected part
                    dfs(it, adj, visited);
                    comp++;
                }
            }

            // if more than one component forms, it's an articulation point
            if (comp > 1)
                res.add(i);
        }

        if (res.isEmpty())
            return new ArrayList<>(Arrays.asList(-1));

        return res;
    }

    public static void main(String[] args) {
        int V = 5;
        int[][] edges = {{0, 1}, {1, 4}, {2, 3}, {2, 4}, {3, 4}};

        ArrayList<ArrayList<Integer>> adj = constructadj(V, edges);
        ArrayList<Integer> ans = articulationPoints(V, adj);
        for (int it : ans) {
            System.out.print(it + " ");
        }
    }
}

Python

def constructadj(V, edges):

    # Builds adjacency list from edge list
    adj = [[] for _ in range(V)]
    for u, v in edges:
        adj[u].append(v)
        adj[v].append(u)
    return adj

# Standard DFS to mark all reachable nodes
def dfs(node, adj, visited):

    # Standard DFS to mark all reachable nodes
    visited[node] = True

    for neighbor in adj[node]:
        if not visited[neighbor]:
            dfs(neighbor, adj, visited)

def articulationPoints(V, adj):
    res = []

    # Try removing each node one by one
    for i in range(V):
        visited = [False] * V
        visited[i] = True

        # count DFS calls from i's neighbors
        comp = 0
        for it in adj[i]:
            if comp > 1:
                break
            if not visited[it]:

                # explore connected part
                dfs(it, adj, visited)
                comp += 1

        # if more than one component forms, it's an articulation point
        if comp > 1:
            res.append(i)

    if not res:
        return [-1]

    return res

if __name__ == "__main__":
    V = 5
    edges = [[0, 1], [1, 4], [2, 3], [2, 4], [3, 4]]

    # Finds articulation points using naive DFS approach
    adj = constructadj(V, edges)
    ans = articulationPoints(V, adj)
    for it in ans:
        print(it, end=" ")

using System;
using System.Collections.Generic;

 class GFG {

    // Builds adjacency list from edge list
    static List<List<int>> constructAdj(int V, int[,] edges) {

        List<List<int>> adj = new List<List<int>>();
        for (int i = 0; i < V; i++) {
            adj.Add(new List<int>());
        }

        int E = edges.GetLength(0);
        for (int i = 0; i < E; i++) {
            int u = edges[i, 0];
            int v = edges[i, 1];
            adj[u].Add(v);
            adj[v].Add(u);
        }

        return adj;
    }

    // Standard DFS to mark all reachable nodes
    static void DFS(int node, List<List<int>> adj, bool[] visited) {
        visited[node] = true;

        foreach (int neighbor in adj[node]) {
            if (!visited[neighbor]) {
                DFS(neighbor, adj, visited);
            }
        }
    }

    // Finds articulation points using naive DFS approach
    static List<int> articulationPoints(int V, List<List<int>>adj) {

        List<int> res = new List<int>();

        // Try removing each node one by one
        for (int i = 0; i < V; ++i) {
            bool[] visited = new bool[V];
            visited[i] = true;

            // count DFS calls from i's neighbors
            int comp = 0;
            foreach (int it in adj[i]) {

                // early stop if already more than 1 component
                if (comp > 1) break;

                if (!visited[it]) {
                    // explore connected part
                    DFS(it, adj, visited);
                    comp++;
                }
            }

            // if more than one component forms, it's an articulation point
            if (comp > 1)
                res.Add(i);
        }

        if (res.Count == 0)
            return new List<int> { -1 };

        return res;
    }

    public static void Main(string[] args) {
        int V = 5;
        int[,] edges = new int[,] { { 0, 1 }, { 1, 4 }, { 2, 3 }, { 2, 4 }, { 3, 4 } };

        List<List<int>> adj = constructAdj(V, edges);
        List<int> ans = articulationPoints(V, adj);
        foreach (int it in ans) {
            Console.Write(it + " ");
        }
    }
}

JavaScript

// Builds adjacency list from edge list
function constructadj(V, edges) {
    let adj = Array.from({ length: V }, () => []);

    for (let [u, v] of edges) {
        adj[u].push(v);
        adj[v].push(u);
    }

    return adj;
}

// Standard DFS to mark all reachable nodes
function dfs(node, adj, visited) {
    visited[node] = true;

    for (let neighbor of adj[node]) {
        if (!visited[neighbor]) {
            dfs(neighbor, adj, visited);
        }
    }
}

// Finds articulation points using naive DFS approach
function articulationPoints(V, adj) {

    const res = [];

    // Try removing each node one by one
    for (let i = 0; i < V; ++i) {
        let visited = Array(V).fill(false);
        visited[i] = true;

        // count DFS calls from i's neighbors
        let comp = 0;
        for (let it of adj[i]) {

            // early stop if already more than 1 component
            if (comp > 1) break;

            if (!visited[it]) {

                // explore connected part
                dfs(it, adj, visited);
                comp++;
            }
        }

        // if more than one component forms, it's an articulation point
        if (comp > 1)
            res.push(i);
    }

    if (res.length === 0)
        return [-1];

    return res;
}

// Driver Code
const V = 5;
const edges = [[0, 1], [1, 4], [2, 3], [2, 4], [3, 4]];

const adj = constructadj(V, edges);
const ans = articulationPoints(V, adj);
console.log(ans.join(" "));

Output

1 4

[Better Approach] - Using Tarjan's Algorithm - O(V + E) Time and O(V) Space

The idea is to use DFS to track how each node connects to its ancestors using discovery time and low values. Here, discovery time records when a node is first visited, and the low value represents the earliest (smallest) discovery time reachable from that node, including via back edges. For every node, we try to determine whether its subtree has an alternative path to reach an ancestor. If such a path does not exist for a child subtree, then the current node becomes a critical connection point, and removing it would disconnect that subtree from the rest of the graph. By propagating these low values during DFS, we can efficiently identify all nodes whose removal increases the number of connected components, i.e., the articulation points.

Let's understand with an example:

example-1drawio

For the vertex 3 (which is not the root), vertex 4 is the child of vertex 3. No vertex in the subtree rooted at vertex 4 has a back edge to one of ancestors of vertex 3. Thus on removal of vertex 3 and its associated edges the graph will get disconnected or the number of components in the graph will increase as the subtree rooted at vertex 4 will form a separate component. Hence vertex 3 is an articulation point.

Now consider the following graph:
Tree1drawio

Again the vertex 4 is the child of vertex 3. For the subtree rooted at vertex 4, vertex 7 in this subtree has a back edge to one of the ancestors of vertex 3 (which is vertex 1). Thus this subtree will not get disconnected on the removal of vertex 3 because of this back edge. Since there is no child v of vertex 3, such that subtree rooted at vertex v does not have a back edge to one of the ancestors of vertex 3. Hence vertex 3 is not an articulation point in this case.

Step by Step implementation:

Maintain these arrays and integers and perform a DFS traversal.

disc[]: Discovery time of each vertex during DFS.
low[]: The lowest discovery time reachable from the subtree rooted at that vertex (via tree or back edges).
parent: To keep track of each node’s parent in the DFS tree.
visited[]: To mark visited nodes.

Root Node Case:

For the root node of DFS (i.e., parent[u] == -1), check how many child DFS calls it makes.
If the root has two or more children, it is an articulation point

For any non-root node u, check all its adjacent nodes:

If v is an unvisited child, recur for v, and after returning update low[u] = min(low[u], low[v]) .
If low[v] >= disc[u], then u is an articulation point because v and its subtree cannot reach any ancestor of u, so removing u would disconnect v.

Back Edge Case

If v is already visited and is not the parent of u then It’s a back edge. Update low[u] = min(low[u], disc[v])
This helps bubble up the lowest reachable ancestor through a back edge.

After DFS traversal completes, all nodes marked as articulation points are stored in result array.

C++

#include <iostream>
#include<vector>
using namespace std;

vector<vector<int>> constructAdj(int V, vector<vector<int>> &edges) {
    vector<vector<int>> adj(V);

    for (auto &edge : edges) {

        adj[edge[0]].push_back(edge[1]);
        adj[edge[1]].push_back(edge[0]);
    }
    return adj;
}

// Helper function to perform DFS and find articulation points
// using Tarjan's algorithm.
void findPoints(vector<vector<int>> &adj, int u, vector<int> &visited,
                vector<int> &disc, vector<int> &low,
                int &time, int parent, vector<int> &isAP) {

    // Mark vertex u as visited and assign discovery
    // time and low value
    visited[u] = 1;
    disc[u] = low[u] = ++time;
    int children = 0;

    // Process all adjacent vertices of u
    for (int v : adj[u]) {

        // If v is not visited, then recursively visit it
        if (!visited[v]) {
            children++;
            findPoints(adj, v, visited, disc, low, time, u, isAP);

            // Check if the subtree rooted at v has a
            // connection to one of the ancestors of u
            low[u] = min(low[u], low[v]);

            // If u is not a root and low[v] is greater than or equal to disc[u],
            // then u is an articulation point
            if (parent != -1 && low[v] >= disc[u]) {
                isAP[u] = 1;
            }
        }

        // Update low value of u for back edge
        else if (v != parent) {
            low[u] = min(low[u], disc[v]);
        }
    }

    // If u is root of DFS tree and has more than
    // one child, it is an articulation point
    if (parent == -1 && children > 1) {
        isAP[u] = 1;
    }
}

// Main function to find articulation points in the graph
vector<int> articulationPoints(int V, vector<vector<int>>& adj) {

    vector<int> disc(V, 0), low(V, 0), visited(V, 0), isAP(V, 0);
    int time = 0;

    // Run DFS from each vertex if not
    // already visited (to handle disconnected graphs)
    for (int u = 0; u < V; u++) {
        if (!visited[u]) {
            findPoints(adj, u, visited, disc, low, time, -1, isAP);
        }
    }

    // Collect all vertices that are articulation points
    vector<int> result;
    for (int u = 0; u < V; u++) {
        if (isAP[u]) {
            result.push_back(u);
        }
    }

    // If no articulation points are found, return vector containing -1
    return result.empty() ? vector<int>{-1} : result;
}

int main() {
    int V = 5;
    vector<vector<int>> edges = {{0, 1}, {1, 4}, {2, 3}, {2, 4}, {3, 4}};

    vector<vector<int>> adj = constructAdj(V, edges);
    vector<int> ans = articulationPoints(V,adj);

    for (int u : ans) {
        cout << u << " ";
    }
    cout << endl;

    return 0;
}

Java

import java.util.ArrayList;

 class GFG {

     static ArrayList<ArrayList<Integer>> constructAdj(int V, int[][] edges) {
        ArrayList<ArrayList<Integer>> adj = new ArrayList<>();
        for (int i = 0; i < V; i++) adj.add(new ArrayList<>());

        for (int[] edge : edges) {
            adj.get(edge[0]).add(edge[1]);
            adj.get(edge[1]).add(edge[0]);
        }
        return adj;
    }

    // Helper function to perform DFS and find articulation points
    // using Tarjan's algorithm.
     static void findPoints(ArrayList<ArrayList<Integer>> adj, int u, int[] visited,
                                  int[] disc, int[] low,
                                  int[] time, int parent, int[] isAP) {

        // Mark vertex u as visited and assign discovery
        // time and low value
        visited[u] = 1;
        disc[u] = low[u] = ++time[0];
        int children = 0;

        // Process all adjacent vertices of u
        for (int v : adj.get(u)) {

            // If v is not visited, then recursively visit it
            if (visited[v] == 0) {
                children++;
                findPoints(adj, v, visited, disc, low, time, u, isAP);

                // Check if the subtree rooted at v has a
                // connection to one of the ancestors of u
                low[u] = Math.min(low[u], low[v]);

                // If u is not a root and low[v] is greater
                // than or equal to disc[u],
                // then u is an articulation point
                if (parent != -1 && low[v] >= disc[u]) {
                    isAP[u] = 1;
                }
            }

            // Update low value of u for back edge
            else if (v != parent) {
                low[u] = Math.min(low[u], disc[v]);
            }
        }

        // If u is root of DFS tree and has more than
        // one child, it is an articulation point
        if (parent == -1 && children > 1) {
            isAP[u] = 1;
        }
    }

    // Main function to find articulation points in the graph
     static ArrayList<Integer> articulationPoints(int V, ArrayList<ArrayList<Integer>> adj) {

        int[] disc = new int[V], low = new int[V],
        visited = new int[V], isAP = new int[V];
        int[] time = {0};

        // Run DFS from each vertex if not
        // already visited (to handle disconnected graphs)
        for (int u = 0; u < V; u++) {
            if (visited[u] == 0) {
                findPoints(adj, u, visited, disc, low, time, -1, isAP);
            }
        }

        // Collect all vertices that are articulation points
        ArrayList<Integer> result = new ArrayList<>();
        for (int u = 0; u < V; u++) {
            if (isAP[u] == 1) {
                result.add(u);
            }
        }

        // If no articulation points are found, return list containing -1
        if (result.isEmpty()) result.add(-1);
        return result;
    }

    public static void main(String[] args) {
        int V = 5;
        int[][] edges = {{0, 1}, {1, 4}, {2, 3}, {2, 4}, {3, 4}};

        ArrayList<ArrayList<Integer>> adj = constructAdj(V, edges);
        ArrayList<Integer> ans = articulationPoints(V, adj);

        for (int u : ans) {
            System.out.print(u + " ");
        }
        System.out.println();
    }
}

Python

def constructAdj(V, edges):
    adj = [[] for _ in range(V)]

    for edge in edges:
        adj[edge[0]].append(edge[1])
        adj[edge[1]].append(edge[0])
    return adj

# Helper function to perform DFS and find articulation points
# using Tarjan's algorithm.
def findPoints(adj, u, visited, disc, low, time, parent, isAP):

    # Mark vertex u as visited and assign discovery
    # time and low value
    visited[u] = 1
    time[0] += 1
    disc[u] = low[u] = time[0]
    children = 0

    # Process all adjacent vertices of u
    for v in adj[u]:

        # If v is not visited, then recursively visit it
        if not visited[v]:
            children += 1
            findPoints(adj, v, visited, disc, low, time, u, isAP)

            # Check if the subtree rooted at v has a
            # connection to one of the ancestors of u
            low[u] = min(low[u], low[v])

            # If u is not a root and low[v] is greater than or equal to disc[u],
            # then u is an articulation point
            if parent != -1 and low[v] >= disc[u]:
                isAP[u] = 1

        # Update low value of u for back edge
        elif v != parent:
            low[u] = min(low[u], disc[v])

    # If u is root of DFS tree and has more than
    # one child, it is an articulation point
    if parent == -1 and children > 1:
        isAP[u] = 1

# Main function to find articulation points in the graph
def articulationPoints(V, adj):

    disc = [0] * V
    low = [0] * V
    visited = [0] * V
    isAP = [0] * V
    time = [0]

    # Run DFS from each vertex if not
    # already visited (to handle disconnected graphs)
    for u in range(V):
        if not visited[u]:
            findPoints(adj, u, visited, disc, low, time, -1, isAP)

    # Collect all vertices that are articulation points
    result = [u for u in range(V) if isAP[u]]

    # If no articulation points are found, return list containing -1
    return result if result else [-1]

if __name__ == "__main__":
    V = 5
    edges = [[0, 1], [1, 4], [2, 3], [2, 4], [3, 4]]

    adj = constructAdj(V, edges)
    ans = articulationPoints(V, adj)

    for u in ans:
        print(u, end=' ')
    print()

using System;
using System.Collections.Generic;

class GFG {
    static List<List<int>> constructAdj(int V, int[,] edges) {
        List<List<int>> adj = new List<List<int>>();
        for (int i = 0; i < V; i++) {
            adj.Add(new List<int>());
        }

        int M = edges.GetLength(0);
        for (int i = 0; i < M; i++) {
            int u = edges[i, 0];
            int v = edges[i, 1];
            adj[u].Add(v);
            adj[v].Add(u);
        }

        return adj;
    }

    // Helper function to perform DFS and find articulation points
    // using Tarjan's algorithm.
    static void findPoints(List<List<int>> adj, int u, List<int> visited,
                           List<int> disc, List<int> low,
                           ref int time, int parent, List<int> isAP) {

        // Mark vertex u as visited and assign discovery
        // time and low value
        visited[u] = 1;
        disc[u] = low[u] = ++time;
        int children = 0;

        // Process all adjacent vertices of u
        foreach (int v in adj[u])
        {
            // If v is not visited, then recursively visit it
            if (visited[v] == 0)
            {
                children++;
                findPoints(adj, v, visited, disc, low, ref time, u, isAP);

                // Check if the subtree rooted at v has a
                // connection to one of the ancestors of u
                low[u] = Math.Min(low[u], low[v]);

                // If u is not a root and low[v] is greater
                // than or equal to disc[u],
                // then u is an articulation point
                if (parent != -1 && low[v] >= disc[u])
                {
                    isAP[u] = 1;
                }
            }

            // Update low value of u for back edge
            else if (v != parent)
            {
                low[u] = Math.Min(low[u], disc[v]);
            }
        }

        // If u is root of DFS tree and has more than
        // one child, it is an articulation point
        if (parent == -1 && children > 1)
        {
            isAP[u] = 1;
        }
    }

    // Main function to find articulation points in the graph
    static List<int> articulationPoints(int V, List<List<int>> adj)
    {

        List<int> disc = new List<int>(new int[V]);
        List<int> low = new List<int>(new int[V]);
        List<int> visited = new List<int>(new int[V]);
        List<int> isAP = new List<int>(new int[V]);
        int time = 0;

        // Run DFS from each vertex if not
        // already visited (to handle disconnected graphs)
        for (int u = 0; u < V; u++)
        {
            if (visited[u] == 0)
            {
                findPoints(adj, u, visited, disc, low, ref time, -1, isAP);
            }
        }

        // Collect all vertices that are articulation points
        List<int> result = new List<int>();
        for (int u = 0; u < V; u++)
        {
            if (isAP[u] == 1)
            {
                result.Add(u);
            }
        }

        // If no articulation points are found, return list containing -1
        return result.Count == 0 ? new List<int> { -1 } : result;
    }

    static void Main()
    {
        int V = 5;
        int[,] edges = {
            {0, 1},
            {1, 4},
            {2, 3},
            {2, 4},
            {3, 4}
        };

        List<List<int>> adj = constructAdj(V, edges);
        List<int> ans = articulationPoints(V, adj);

        foreach (int u in ans)
        {
            Console.Write(u + " ");
        }
        Console.WriteLine();
    }
}

JavaScript

// Build adjacency list from edge list
function constructAdj(V, edges) {
    const adj = Array.from({ length: V }, () => []);

    for (let i = 0; i < edges.length; i++) {
        const [u, v] = edges[i];
        adj[u].push(v);
        adj[v].push(u);
    }

    return adj;
}

// Helper function to perform DFS and find articulation points
// using Tarjan's algorithm.
function findPoints(adj, u, visited, disc, low, timeRef, parent, isAP) {

    // Mark vertex u as visited and assign discovery
    // time and low value
    visited[u] = 1;
    disc[u] = low[u] = ++timeRef.value;
    let children = 0;

    // Process all adjacent vertices of u
    for (let v of adj[u]) {

        // If v is not visited, then recursively visit it
        if (!visited[v]) {
            children++;
            findPoints(adj, v, visited, disc, low, timeRef, u, isAP);

            // Check if the subtree rooted at v has a
            // connection to one of the ancestors of u
            low[u] = Math.min(low[u], low[v]);

            // If u is not a root and low[v] is greater
            // than or equal to disc[u],
            // then u is an articulation point
            if (parent !== -1 && low[v] >= disc[u]) {
                isAP[u] = 1;
            }
        }

        // Update low value of u for back edge
        else if (v !== parent) {
            low[u] = Math.min(low[u], disc[v]);
        }
    }

    // If u is root of DFS tree and has more than
    // one child, it is an articulation point
    if (parent === -1 && children > 1) {
        isAP[u] = 1;
    }
}

// Main function to find articulation points in the graph
function articulationPoints(V, adj) {

    const disc = Array(V).fill(0);
    const low = Array(V).fill(0);
    const visited = Array(V).fill(0);
    const isAP = Array(V).fill(0);
    const timeRef = { value: 0 };

    // Run DFS from each vertex if not
    // already visited (to handle disconnected graphs)
    for (let u = 0; u < V; u++) {
        if (!visited[u]) {
            findPoints(adj, u, visited, disc, low, timeRef, -1, isAP);
        }
    }

    // Collect all vertices that are articulation points
    const result = [];
    for (let u = 0; u < V; u++) {
        if (isAP[u]) {
            result.push(u);
        }
    }

    // If no articulation points are found, return array containing -1
    return result.length === 0 ? [-1] : result;
}

// Driver Code
const V = 5;
const edges = [
    [0, 1],
    [1, 4],
    [2, 3],
    [2, 4],
    [3, 4]
];

const adj = constructAdj(V, edges);
const ans = articulationPoints(V, adj);
console.log(ans.join(' '));

Output

1 4

[Expected Approach] - Using Tarjan’s Algorithm (Iterative Method) - O(V + E) Time and O(V) Space

We can use Tarjan’s algorithm with an explicit stack to manage the traversal state instead of relying on the system’s call stack. The logic remains the same that we maintain disc, low, parent, and childrenCount but we manually control how nodes are processed.
For each node, we store its current state, including which neighbor to visit next and whether the node is in the entering or exiting phase.

With this approach, we preserve the core idea of Tarjan’s algorithm while making it more suitable for large or deep graphs.

C++

#include <iostream>
#include <vector>
#include <algorithm>
using namespace std;

void tarjan(int start, vector<vector<int>>& adj, vector<bool>& visited,
                  vector<int>& disc, vector<int>& low, vector<int>& parent,
                  vector<int>& childrenCount, vector<bool>& ap) {

    // Stack stores {node, neighborIndex, state}
    int n = adj.size();
    vector<array<int, 3>> stack(n * 2);
    int top = 0, time = 0;

    stack[top++] = {start, 0, 0};

    while (top > 0) {
        int u = stack[top - 1][0], idx = stack[top - 1][1], state = stack[top - 1][2];
        top--;

        if (state == 0) {

            // First visit: mark discovery and low
            if (!visited[u]) {
                visited[u] = true;
                disc[u] = low[u] = ++time;
            }

            // Process neighbors
            if (idx < (int)adj[u].size()) {
                int v = adj[u][idx];

                // Push current node with next neighbor
                stack[top++] = {u, idx + 1, 0};

                // Visit child
                if (!visited[v]) {
                    parent[v] = u;
                    childrenCount[u]++;
                    stack[top++] = {v, 0, 0};
                }
                // Back edge
                else if (v != parent[u]) {
                    low[u] = min(low[u], disc[v]);
                }
            }
            // Finished neighbors, push exit state
            else {
                stack[top++] = {u, 0, 1};
            }
        }
        else {

            // Update parent low and mark articulation
            if (top > 0) {
                int p = stack[top - 1][0];
                low[p] = min(low[p], low[u]);
                if (parent[p] != -1 && low[u] >= disc[p]) ap[p] = true;
            }
            // Root articulation check
            else if (childrenCount[start] > 1) {
                ap[start] = true;
            }
        }
    }
}

// Main function to find articulation points
vector<int> articulationPoints(int V, vector<vector<int>>& adj) {

    // Initialize arrays
    vector<int> disc(V, 0), low(V, 0), parent(V, -1), childrenCount(V, 0);
    vector<bool> visited(V, false), ap(V, false);

    // Run iterative DFS for each component
    for (int i = 0; i < V; i++) {
        if (!visited[i]) tarjan(i, adj, visited, disc, low, parent, childrenCount, ap);
    }

    // Collect articulation points
    vector<int> result;
    for (int i = 0; i < V; i++) if (ap[i]) result.push_back(i);
    if (result.empty()) result.push_back(-1);
    return result;
}

int main() {
    int V = 5;
    int edges[5][2] = {{0, 1}, {1, 4}, {2, 3}, {2, 4}, {3, 4}};

    // Build adjacency list
    vector<vector<int>> adj(V);
    for (auto &e : edges) {
        adj[e[0]].push_back(e[1]);
        adj[e[1]].push_back(e[0]);
    }

    vector<int> ans = articulationPoints(V, adj);
    for (int x : ans) cout << x << " ";
    cout << "\n";
}

Java

import java.util.ArrayList;

class GFG {

    static ArrayList<Integer> articulationPoints(int V, ArrayList<ArrayList<Integer>> adj) {

        int[] disc = new int[V], low = new int[V], parent = new int[V], childrenCount = new int[V];
        boolean[] visited = new boolean[V], ap = new boolean[V];
        for (int i = 0; i < V; i++) parent[i] = -1;

        // Run iterative DFS for each component
        for (int i = 0; i < V; i++) {
            if (!visited[i]) tarjan(i, adj, visited, disc, low, parent, childrenCount, ap);
        }

        // Collect articulation points
        ArrayList<Integer> result = new ArrayList<>();
        for (int i = 0; i < V; i++) if (ap[i]) result.add(i);
        if (result.isEmpty()) result.add(-1);
        return result;
    }

    private static void tarjan(int start, ArrayList<ArrayList<Integer>> adj, boolean[] visited,
                                     int[] disc, int[] low, int[] parent, int[] childrenCount, boolean[] ap) {

        // Stack stores {node, neighborIndex, state}
        int[][] stack = new int[visited.length * 2][3];
        int top = 0, time = 0;

        stack[top++] = new int[]{start, 0, 0};

        while (top > 0) {
            int u = stack[top - 1][0], idx = stack[top - 1][1], state = stack[top - 1][2];
            top--;

            if (state == 0) {

                // First visit: mark discovery and low
                if (!visited[u]) {
                    visited[u] = true;
                    disc[u] = low[u] = ++time;
                }

                // Process neighbors
                if (idx < adj.get(u).size()) {
                    int v = adj.get(u).get(idx);

                    // Push current node with next neighbor
                    stack[top++] = new int[]{u, idx + 1, 0};

                    // Visit child
                    if (!visited[v]) {
                        parent[v] = u;
                        childrenCount[u]++;
                        stack[top++] = new int[]{v, 0, 0};
                    }

                    // Back edge
                    else if (v != parent[u]) {
                        low[u] = Math.min(low[u], disc[v]);
                    }
                }

                // Finished neighbors, push exit state
                else {
                    stack[top++] = new int[]{u, 0, 1};
                }
            }

            // Exiting node
            else {

                // Update parent low and mark articulation
                if (top > 0) {
                    int p = stack[top - 1][0];
                    low[p] = Math.min(low[p], low[u]);
                    if (parent[p] != -1 && low[u] >= disc[p]) ap[p] = true;
                }

                // Root articulation check
                else if (childrenCount[start] > 1) {
                    ap[start] = true;
                }
            }
        }
    }

    public static void main(String[] args) {
        int V = 5;

        // Build adjacency list
        ArrayList<ArrayList<Integer>> adj = new ArrayList<>();
        for (int i = 0; i < V; i++) adj.add(new ArrayList<>());
        int[][] edges = {{0, 1}, {1, 4}, {2, 3}, {2, 4}, {3, 4}};
        for (int[] e : edges) {
            adj.get(e[0]).add(e[1]);
            adj.get(e[1]).add(e[0]);
        }

        ArrayList<Integer> ans = articulationPoints(V, adj);

        for (int x : ans) {
            System.out.print(x + " ");
        }
    }
}

Python

def articulation_points(V, adj):

    # discovery times
    disc = [0] * V

    # low values
    low = [0] * V
    parent = [-1] * V
    children_count = [0] * V
    visited = [False] * V
    ap = [False] * V

    # Run iterative DFS for each component
    for i in range(V):
        if not visited[i]:
            tarjan(i, adj, visited, disc, low, parent, children_count, ap)

    # Collect articulation points
    result = [i for i in range(V) if ap[i]]
    return result if result else [-1]


def tarjan(start, adj, visited, disc, low, parent, children_count, ap):

    # Stack stores {node, neighborIndex, state}
    # state 0 = entering, 1 = exiting
    stack = [[start, 0, 0]]
    time = 0

    while stack:
        u, idx, state = stack.pop()

        if state == 0:

            # First visit: mark discovery and low
            if not visited[u]:
                visited[u] = True
                time += 1
                disc[u] = low[u] = time

            # Process neighbors
            if idx < len(adj[u]):
                v = adj[u][idx]

                # Push current node with next neighbor
                stack.append([u, idx + 1, 0])

                # Visit child
                if not visited[v]:
                    parent[v] = u
                    children_count[u] += 1
                    stack.append([v, 0, 0])

                # Back edge
                elif v != parent[u]:
                    low[u] = min(low[u], disc[v])
            else:
                # Finished neighbors, push exit state
                stack.append([u, 0, 1])

        else:

            # Update parent low and mark articulation
            if stack:
                p = stack[-1][0]
                low[p] = min(low[p], low[u])
                if parent[p] != -1 and low[u] >= disc[p]:
                    ap[p] = True

            # Root articulation check
            else:
                if children_count[start] > 1:
                    ap[start] = True


if __name__ == "__main__":
    V = 5

    # Build adjacency list
    adj = [[] for _ in range(V)]
    edges = [(0, 1), (1, 4), (2, 3), (2, 4), (3, 4)]
    for u, v in edges:
        adj[u].append(v)
        adj[v].append(u)

    print(*articulation_points(V, adj))

using System;
using System.Collections.Generic;

class GFG
{
    private void tarjan(int start, List<List<int>> adj, bool[] visited,
                              int[] disc, int[] low, int[] parent, int[] childrenCount, bool[] ap)
    {
        // Stack stores {node, neighborIndex, state}
        int n = adj.Count;
        var stack = new List<int[]>(n * 2);
        int time = 0;

        stack.Add(new int[] { start, 0, 0 });

        while (stack.Count > 0)
        {
            var topElem = stack[stack.Count - 1];
            stack.RemoveAt(stack.Count - 1);
            int u = topElem[0], idx = topElem[1], state = topElem[2];

            if (state == 0)
            {
                // First visit: mark discovery and low
                if (!visited[u])
                {
                    visited[u] = true;
                    disc[u] = low[u] = ++time;
                }

                // Process neighbors
                if (idx < adj[u].Count)
                {
                    int v = adj[u][idx];

                    // Push current node with next neighbor
                    stack.Add(new int[] { u, idx + 1, 0 });

                    // Visit child
                    if (!visited[v])
                    {
                        parent[v] = u;
                        childrenCount[u]++;
                        stack.Add(new int[] { v, 0, 0 });
                    }
                    // Back edge
                    else if (v != parent[u])
                    {
                        low[u] = Math.Min(low[u], disc[v]);
                    }
                }
                // Finished neighbors, push exit state
                else
                {
                    stack.Add(new int[] { u, 0, 1 });
                }
            }
            else
            {
                // Update parent low and mark articulation
                if (stack.Count > 0)
                {
                    int p = stack[stack.Count - 1][0];
                    low[p] = Math.Min(low[p], low[u]);
                    if (parent[p] != -1 && low[u] >= disc[p]) ap[p] = true;
                }
                // Root articulation check
                else if (childrenCount[start] > 1)
                {
                    ap[start] = true;
                }
            }
        }
    }

    // Main function to find articulation points
    public List<int> articulationPoints(int V, List<List<int>> adj)
    {
        // Initialize arrays
        int[] disc = new int[V], low = new int[V], parent = new int[V], childrenCount = new int[V];
        bool[] visited = new bool[V], ap = new bool[V];
        for (int i = 0; i < V; i++) parent[i] = -1;

        // Run iterative DFS for each component
        for (int i = 0; i < V; i++)
        {
            if (!visited[i])
            {
                tarjan(i, adj, visited, disc, low, parent, childrenCount, ap);
            }
        }

        // Collect articulation points
        var result = new List<int>();
        for (int i = 0; i < V; i++) if (ap[i]) result.Add(i);
        if (result.Count == 0) result.Add(-1);
        return result;
    }

    static void Main()
    {
        int V = 5;

        // Build adjacency list
        var adj = new List<List<int>>();
        for (int i = 0; i < V; i++) adj.Add(new List<int>());
        int[][] edges = new int[][]
        {
            new int[]{0,1}, new int[]{1,4}, new int[]{2,3}, new int[]{2,4}, new int[]{3,4}
        };
        foreach (var e in edges)
        {
            adj[e[0]].Add(e[1]);
            adj[e[1]].Add(e[0]);
        }

        var sol = new GFG();
        var ans = sol.articulationPoints(V, adj);
        Console.WriteLine(string.Join(" ", ans));
    }
}

JavaScript

function articulationPoints(V, adj) {
    // Initialize arrays
    const disc = Array(V).fill(0);
    const low = Array(V).fill(0);
    const parent = Array(V).fill(-1);
    const childrenCount = Array(V).fill(0);
    const visited = Array(V).fill(false);
    const ap = Array(V).fill(false);

    // Run iterative DFS for each component
    for (let i = 0; i < V; i++) {
        if (!visited[i]) {
            tarjan(i, adj, visited, disc, low, parent, childrenCount, ap);
        }
    }

    // Collect articulation points
    const result = [];
    for (let i = 0; i < V; i++) if (ap[i]) result.push(i);
    if (result.length === 0) result.push(-1);
    return result;
}

function tarjan(start, adj, visited, disc, low, parent, childrenCount, ap) {
    // Stack stores {node, neighborIndex, state}
    const stack = [];
    let time = 0;

    stack.push([start, 0, 0]); // state 0 = entering, 1 = exiting

    while (stack.length > 0) {
        const [u, idx, state] = stack.pop();

        if (state === 0) {

            // First visit: mark discovery and low
            if (!visited[u]) {
                visited[u] = true;
                disc[u] = low[u] = ++time;
            }

            // Process neighbors
            if (idx < adj[u].length) {
                const v = adj[u][idx];

                // Push current node with next neighbor
                stack.push([u, idx + 1, 0]);

                // Visit child
                if (!visited[v]) {
                    parent[v] = u;
                    childrenCount[u]++;
                    stack.push([v, 0, 0]);
                }
                // Back edge
                else if (v !== parent[u]) {
                    low[u] = Math.min(low[u], disc[v]);
                }
            }
            // Finished neighbors, push exit state
            else {
                stack.push([u, 0, 1]);
            }
        }
        // Exiting node
        else {

            // Update parent low and mark articulation
            if (stack.length > 0) {
                const p = stack[stack.length - 1][0];
                low[p] = Math.min(low[p], low[u]);
                if (parent[p] !== -1 && low[u] >= disc[p]) ap[p] = true;
            }
            // Root articulation check
            else if (childrenCount[start] > 1) {
                ap[start] = true;
            }
        }
    }
}

// Driver code
const V = 5;

// Build adjacency list
const adj = Array.from({ length: V }, () => []);
const edges = [[0, 1], [1, 4], [2, 3], [2, 4], [3, 4]];
for (const [u, v] of edges) {
    adj[u].push(v);
    adj[v].push(u);
}

console.log(articulationPoints(V, adj).join(" "));

Output

1 4

Articulation Points (or Cut Vertices) in a Graph

[Naive Approach] - Using DFS - O(V × (V + E)) Time and O(V) Space

[Better Approach] - Using Tarjan's Algorithm - O(V + E) Time and O(V) Space

[Expected Approach] - Using Tarjan’s Algorithm (Iterative Method) - O(V + E) Time and O(V) Space

Explore
