Computer Memory

Memory is the electronic storage space where a computer keeps the instructions and data it needs to access quickly. It's the place where information is stored for immediate use.

• Memory is an important component of a computer, as without it, the system wouldn’t operate correctly.
• The computer’s operating system (OS), hardware, and software all rely on memory to function properly.

Communication Between Memory and the CPU

Computer memory communicates with the CPU through a structured system of electronic pathways and controllers, enabling the CPU to fetch and store data rapidly and efficiently. Here’s a detailed breakdown:

System Bus Structure: The main channel for communication between the CPU and memory is the system bus, which is a collection of three types of buses:

1. Data Bus: Transfers the actual data between CPU and memory.
2. Address Bus: Carries the memory address that specifies where data should be read from or written to.
3. Control Bus: Sends signals that coordinate and control the activity, such as indicating read or write operations.

Memory Controller: Communication is orchestrated by a memory controller, which manages the flow of data and ensures that signals between the CPU and memory are synchronized. In older systems, this controller was located on the motherboard; in modern computers, it’s typically integrated into the CPU for greater speed and efficiency

Communication Process

1. When the CPU needs to access data or instructions in memory, it places the address of the required memory location on the address bus.
2. The CPU sends a control signal (read or write command) on the control bus.
3. If reading, the memory controller retrieves the data from the specified address and sends it back to the CPU via the data bus. If writing, the CPU sends data over the data bus to be stored at the designated memory location.
4. This process is repeated billions of times per second during computing operations, forming the backbone of the fetch-decode-execute cycle used to run programs

Types of Computer Memory

Computer memory is categorized into different types based on how data is stored, accessed, and used during processing.

Primary Memory

Also known as the main memory of the computer system, is used to store data and programs, or instructions during computer operations. It uses semiconductor technology and hence is commonly called semiconductor memory. Primary memory is of two types:

• RAM: Also known as Random Access Memory is a volatile memory. Volatile memory stores information based on the power supply. RAM is types: S RAM (Static RAM) and D RAM (Dynamic RAM)
• ROM: A type of non-volatile memory stores data permanently, even when the power is off, known as Read Only Memory (ROM). It is of four main types: MROM(Masked ROM), PROM (Programmable Read Only Memory), EPROM (Erasable Programmable Read Only Memory) and EEPROM (Electrically Erasable Programmable Read Only Memory)

Secondary Memory

Also known as auxiliary memory and backup memory, is a non-volatile memory and used to store a large amount of data or information. The data or information stored in secondary memory is permanent, and it is slower than primary memory. Its features are:

Types of Secondary Memory

1. Magnetic Tapes: A Storage medium uses a long, narrow plastic strip coated with magnetic material to record data as magnetic patches along multiple tracks.

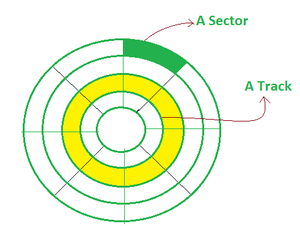

2. Magnetic Disks: Type of storage device uses circular plates coated with magnetic material to store data on both sides.
3. Optical Disks: It's a laser-based storage medium that can be written to and read. It is reasonably priced and has a long lifespan.

Types of Optical Disks

1. CD-ROM: An optical storage device used in secondary memory reads data using a laser beam and stores it permanently as microscopic pits on a reflective (usually aluminum) surface.
2. WORM-(WRITE ONCE READ MANY): Optical storage method allows data to be written only once using a laser beam and read multiple times without modification.
3. DVD: An optical storage format offers higher capacity than CDs and is used for storing video, data, and software.

Cache Memory

Type of high-speed semiconductor memory helps improve CPU performance by storing frequently used data and instructions, known as Cache Memory. Acting as a buffer between the CPU and main memory, it reduces access time and speeds up processing.

Advantages

• It is faster than the main memory.
• When compared to the main memory, it takes less time to access it.
• It keeps the programs that can be run in a short amount of time.
• It stores data for temporary use.

Disadvantages

• Because of the semiconductors used, it is very expensive.
• The size of the cache (amount of data it can store) is usually small.
