Turn lanes are shown as through lanes in lane overview

[Zero3]

Description

OsmAnd does not always show the correct lanes in the lane overview.

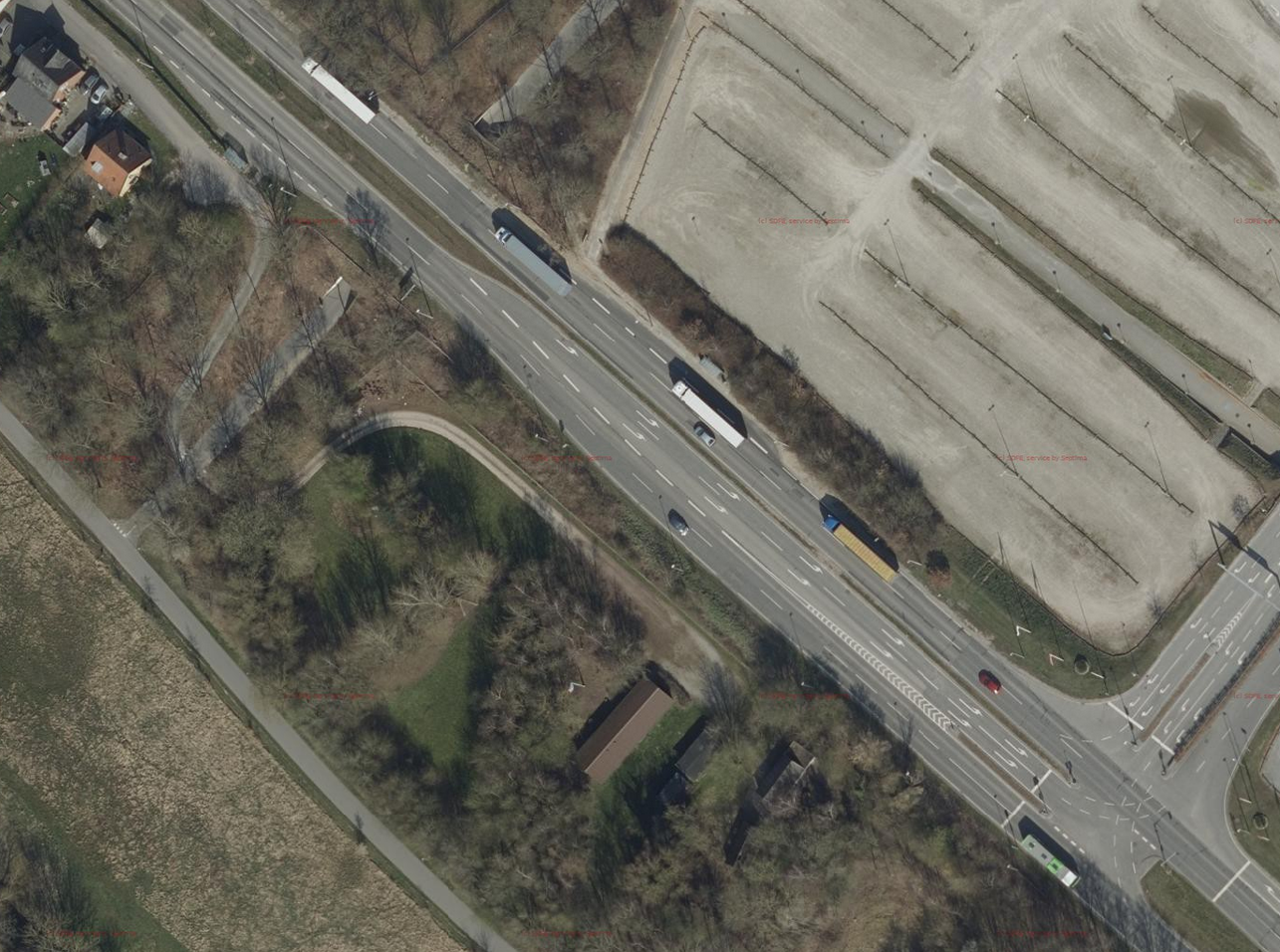

In the example shown below, when driving on the road from north west to south east, the road is splitting into two left turn lanes and two through lanes before the junction at the bottom of the picture:

(OSM link: https://www.openstreetmap.org/edit?editor=id#map=18/55.37221/10.44506)

The two left lanes are mapped as a single way in OSM with lanes=2 and turn=left. The two through lanes are mapped as a single way with lanes=2. This looks correct to me, but as seen below, OsmAnd shows 4 through lanes instead:

On a side note, the "turn slightly right" instruction (see top-left corner of the screen) seems wrong as well, given that I was to drive straight ahead.

Your Environment

OsmAnd Version: 4.0.5
Android/iOS version: 10

Maps used (online or offline): Online

[vshcherb]

I think the lanes are displayed correctly i.e. 4 lanes 2 + 2. Of course it is possible to improve how it's rendered with turn:lanes tag but even without it, it looks ok.

This particular junction has a problem that https://www.openstreetmap.org/way/25356914 (cause it's a link) should not be part of any announcement and that's what could be improved potentially.

[vshcherb]

@sonora The issue was introduced here or ealier
99f8f38
22a1548
I suspect we need to delete code

// sometimes links are
		if ((current <= rs.leftLanes + rs.rightLanes) && (rs.leftLanes > 1 || rs.rightLanes > 1)) {
			rs.speak = true;
		}

and double check what was mentionned in #2571

[Zero3]

@vshcherb thanks for getting back :)

I think the lanes are displayed correctly i.e. 4 lanes 2 + 2. Of course it is possible to improve how it's rendered with turn:lanes tag but even without it, it looks ok.

I agree that 4 lanes is a correct number to show. The issue is that they all show as "go straight", even though the two to the left should be shown as "turn left". I have seen OsmAnd show turn lanes correctly, so it seems like a bug that it does not do so in this case?

This particular junction has a problem that https://www.openstreetmap.org/way/25356914 (cause it's a link) should not be part of any announcement and that's what could be improved potentially.

Just to understand correctly: When you say "announcement", do you mean the instruction at the top-left of the screen? I.e. the "turn slightly right" arrow? If so, I agree :).

(I do not recall if there was a voice announcement at this point or not.)

[vshcherb]

Yes, in most of situations these alerts should not appear if you go straight, though they could appear if the roads are the same priority. Here it's not the case (secondary_link vs secondary), so the fix is easy but it needs to be double checked and aligned with other issues.

[Zero3]

@sonora let me know if I can assist you with any data or testing or something. I can also drive to the place mentioned and test any fix you might have.

[Zero3]

Besides the "secondary_link vs secondary" announcement bug that @vshcherb mentions above, i have a suspicion about the cause of the original issue. Given my example above:

• When tagged as turn:lanes=left|left, OsmAnd seems to show the turn lanes correctly.
• When tagged as turn=left, OsmAnd seems to ignore the tag and treat the lanes as through.

Both variations are documented on https://wiki.openstreetmap.org/wiki/Key:turn#Current_usage

[Zero3]

@Dima-1 @vshcherb It seems like you guys fixed the announcement bug, but what about the original issue? Which seems to be that the turn tag is ignored and only the turn:lanes tag is working (see above: #12481 (comment))
